> PRODUCT > KIOSK > GK1000

Dimesion and Weight
- Height: 56"
- Width: 17"
- Depth: 21"
- Weight: 245lbs.
Power Requirement
- 110/220 VAC ±10%, 50/60 Hz, 145 Watts
Temperature Requirements
- In storage: 32°F - 104°F (0°C ~ 49°C)
- While operating: 45°F - 95°F (5°C ~ 35°C)
Allowable Humidity
- In storage : 10% < RH < 90%, non-condensed
- While operating : 15% < RH < 85%, non-condensed

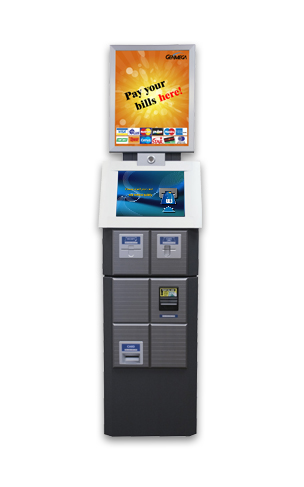

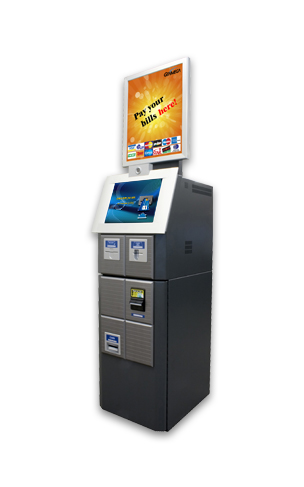

High-Brightness Topper
- Dimensions 15” W x 19.5” H
- Customizable Graphic Panel Insert
Touch-Screen LCD Display
- High-Res 15” touch screen LCD panel
- 1024 x 768 XVGA resolution
- 250 cd/m2 Luminance
Receipt Printer
- 80mm Thermal Receipt Printer
- Automatic Paper Loading and Cutting
- 40 Characters per line
- 200 DPI mono-graphic printing
Ticket Printer (optional)
- 300 dpi print head for enhanced quality
- Stepper motor driven rotary cutter
- USB Interface for easy integration
Card Dispenser (optional)
- 180 mm standard hopper
- Approx 140 embossed cards or 200 non-embossed cards
Main PC Platform
- Intel ATOM® N270 Processor
- Windows 7 Professional
- Solid-State Hard Disk Drive
- TCP/IP Ethernet
Camera (optional)
- Digital Security Camera
Magnetic Card Reader
- DIP Type card reader
- EMV Optional
Bill Acceptor (optional)
- Bill Acceptor - $1, $5, $10, $20, $50 & $100
- denomination bill acceptor(s) with 500 and 1000 note
- cassette capacities
Security
- UL291 Business Hours Vault
- LaGard electronic lock
- Accessed from inside top cabinet
